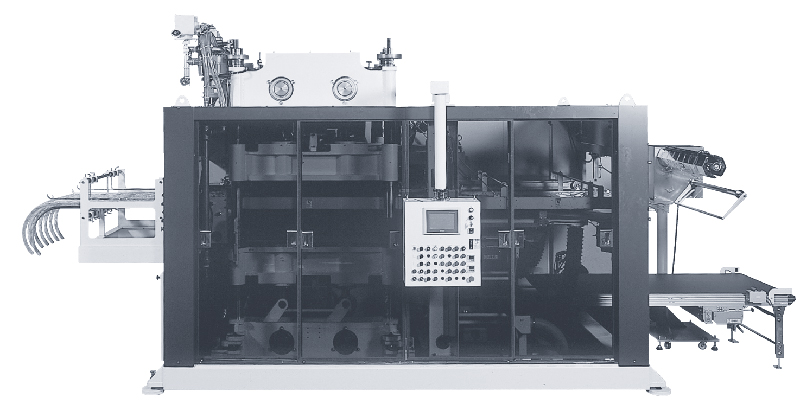

Precise trimming is implemented by AC servo motors used for table drive , sheet feed , knock-out ,table with parts counter and parts push-out .Punch & die trimming . The digital setting screen of the touch panel provides easy operation and high repeatability

Plenty of option devices are available , e.g. a small-hole punching device, camelback, etc

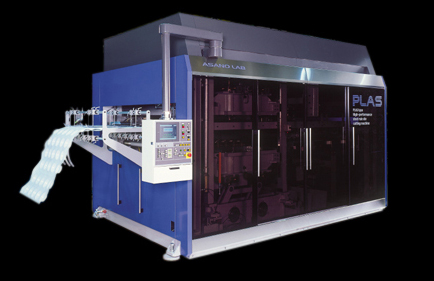

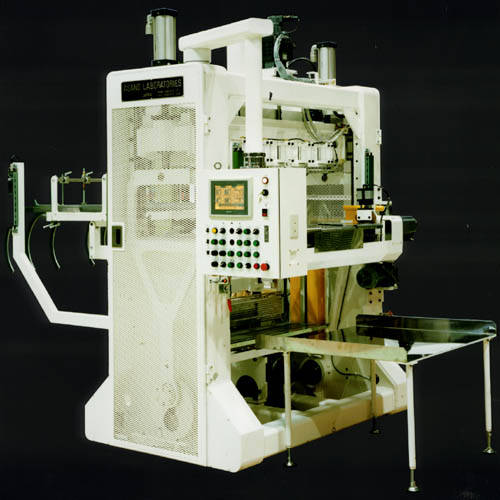

Steel rule die cutting for the whole formed parts of 1 shot at once .

Features:

1. The position of lower trimming table is minutely adjustable in lengthwise feeding direction and crosswise rolling direction to prevent from out-of-place trimming .
2. The steel rule knives are not so expensive in compared with punch & die and prevent from causing plastic chips and angel hairs .
3. The grip type sheet indexing system is almost free from plastic chips and particles .

Grinder of scraps after parts trimming. . This grinder is workable in conjunction with continuous forming machine and trimming machine . In compared with competitors , the operating noise is much less . (80db (A) in-house measured noise ) .
