Forming machin for thick products in cut sheet material

These models are the most suitable to produce inner liners for refrigerators, bathroom fixtures, automotive parts , housing and neon lighting board etc with cut sheet.
Major features: High performance machine satisfactory for the customers such as sharp forming, high-speed forming, easy operation and operating cost reduction.
Custom machines are available depending on required forming size and specification etc.

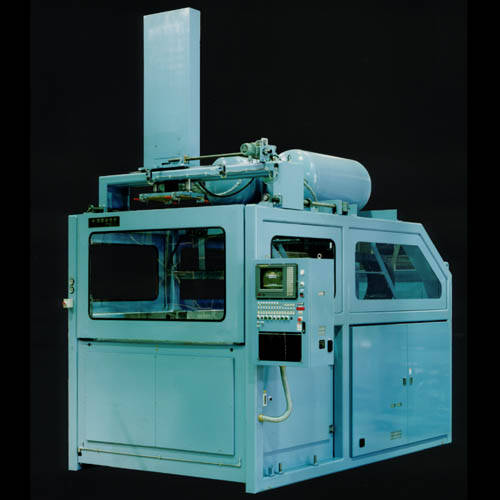

FCS type High-Performance Single-Station Vacuum Forming Machine

This machine is used for forming parts ranging widely from bath tubs and sinks via lamps and computer housings to medical instruments and automotive parts. The Quick Response Heater developed as our original high-speed response heater is equipped. Sheet temperature is automatically controlled to be set value by each heater element (0~100% phase control ) and by whole heater power control.
The forming device is driven by AC servo motor, and includes the sheet level keeping function during heating
The standard position for forming is located at the front center, facilitating loading of cut sheet and unloading of parts.

Main formed parts : Bathroom fixtures, automotive parts , housing and construction parts

Material : Thermoplastic cut sheet such as PVC, HIPS, ABS, PMMA, PC, PP, PE

Model
Forming area (mm×mm)
Forming depth (mm)
Heater (kW)
FCS-4APA
1050×1100
500
65
FCS-5APA
1050×1500
500
86
FCS-6APA
1050×2000
500
115

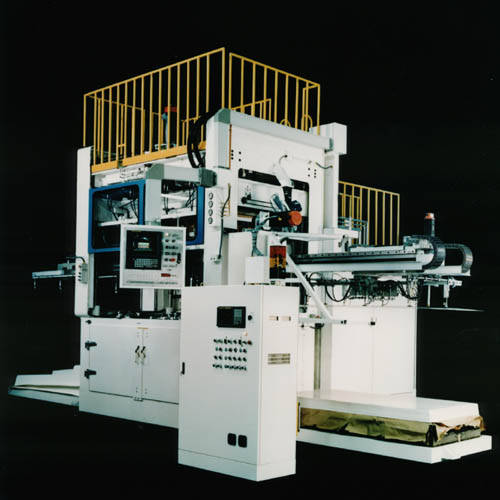

FCSP type High-Performance Single-Station Pressure & Vacuum Forming Machine

This type is further upgraded version of FCS type by adding the pressure air function . In compared with FCS type , cycle time is shorter and more sharp parts forming are possible . Custom machines are available depending on required forming size and specification .

Main formed parts : Bathroom fixtures, automotive parts , housing and construction parts

Material : Thermoplastic materials, such as PVC, HIPS, ABS, PMMA, PC, PP, PE

Model
Forming area (mm×mm)
Forming depth (mm)
Mold clamping force (kN)
Heater (kW)
FCSP-4APA
1000×1000
500
300
65
FCSP-5APA
1000×1500
500
500
94
FCSP-6APA
1000×2000
500
500
122

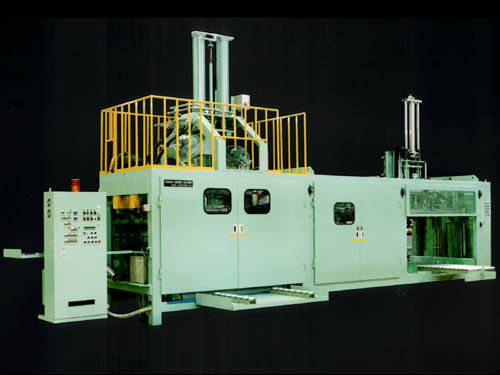

FLT Line Type Continuous Vacuum Forming Machine

The sheet is fed by AC servo driven motor . The Quick Response Heater System and mold changer are equipped . Sheet temperature is measured and automatically controlled to be set value . Easy operation and high repeatability

Main formed parts : Inner liner/door liners for refrigerators, automotive parts , and construction parts

Material : Thermoplastic cut sheet , such as ABS, HIPS
Model
Forming area (mm×mm)
Forming depth (mm)
Cylinder rising force, upper table (kN)
Cylinder rising force, lower table (kN)
Heater (one-stage heating) (kW)
FLT-641-2
700×1800
600
13
30
106.4

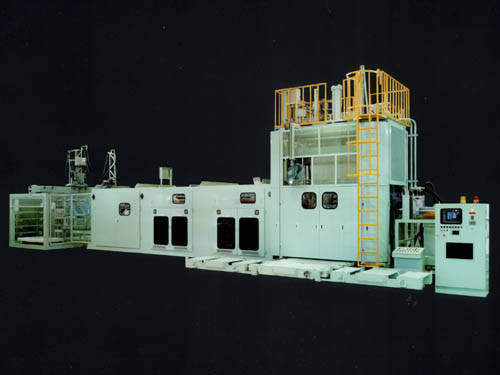

FLTP Line Type Continuous Pressure & Vacuum Forming Machine

This type includes two sheet stock stations and two stage heating by Quick Response Heater . Upgraded high performance machine of FLT type by adding pressure air function . Hydraulic cylinder drive and mold clamping force is 30 ton . Mold changer enables to shorten change-over time . Full automatic PLC control , 14 ECRT screen input for forming and heater conditions , 3.5EFD data management and printer (for hard copy ) are installed as standard.
Custom machines are available .

Main formed parts : Inner liner / door liners for refrigerators, automotive parts , and construction parts

Material : Thermoplastic cut sheet , such as ABS, HIPS
Model
Forming area (mm×mm)
Forming depth (mm)
Table clamping force (kN)
Heater(two-stage heating)(kW)
FLTP-7512-30
900×1750
Female type 650
Male type250
300
216
