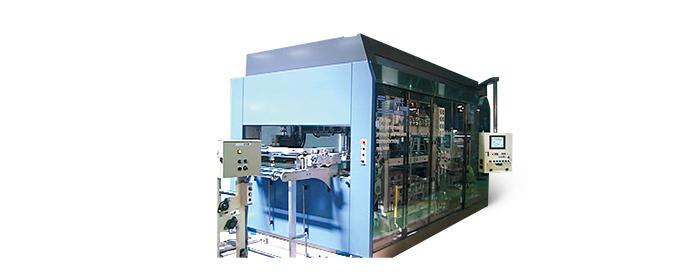

Suits for printed sheet and the material which shrinkage is
too high to use radiant heater. Main product is food
container and blister pack. Especially for OPS lunch-box rid
which needs transparency and printed sheet.
Sheet
feeding and forming table are
AC servo motor
driven.
Die-clamp
and mold changing device facilitate mold changing. Equipped
printed sheet positioning device
and maintenance alert function.
Recommend trimming device is previous die-punching type which cuts each lines PLS or Steel-rule type PLAS which cuts whole shot sheet.
| Main forming products | Food container, blister pack |
|---|---|
| Materials | OPS, HIPS, PVC, PP, A-PET etc. |
| Forming method | Vacuum and pressure forming |
| Sheet feeding method | AC servo motor driven, grip type chain |
| Heater | Aluminum casting heater |
| Forming table driving method | Double toggle type by AC servo motor drive |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
|---|---|---|---|
| CLC-541 | 1050 x 1200 | 100 | 600 |
