FI High-performance in-mold cutting thermoforming machine

FI High-performance in-mold cutting thermoforming machine

Forms and trims in one mold, so that there are no trimming slide and saves the space.

Sheet feeding and forming table are AC servo motor driven. Heater is Asano quick response heater. After counting the number, the formed products are discharged by conveyer.

Process

Process

Specification

Main forming products food container
Materials A-PET, HIPS, PC, PP etc.
Forming method Vacuum and pressure forming
Sheet feeding method AC servo motor driven, grip type chain
Heater Asano Quick response heater
Forming table driving method Crank type by AC servo motor drive
Model Max. forming area
(W x L, mm)
Max. forming depth
(mm)
Max. mold clamping force
(kN)
FI33 800 x 600 height of formed part negative 150 400

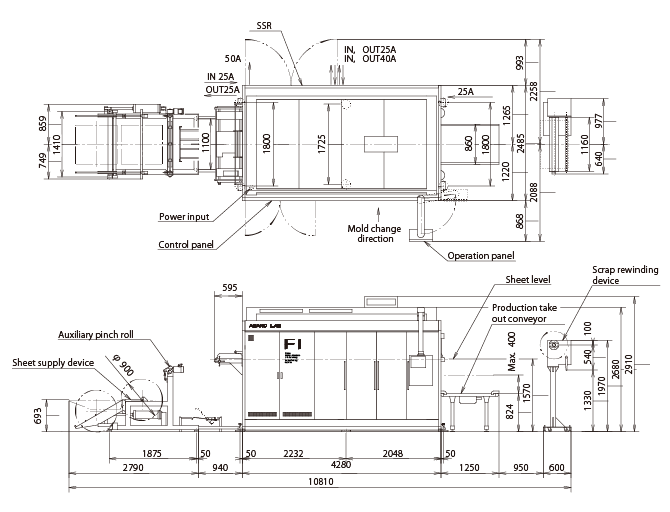

Outside drawing

Outside drawing

(FI33)
