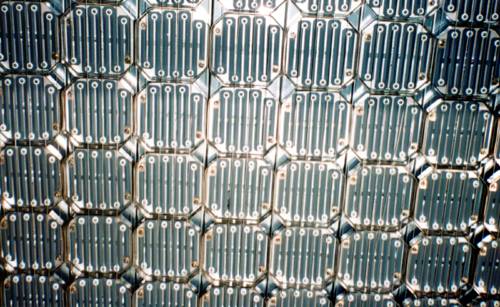

We have developed our own Quick Response Heater for optimum heating of thermal sheets for use in thermoforming machines. In combination with a specialized control system developed at the same time, it provides maximum capabilities and advantages.

1. Quick response
   • Compared with conventional ceramic heaters, approx. 60 times quicker in responsiveness (In-house data)
   • Energy saving - the heater switches off when not in use
2. Sheet temperature control
   • Sheet temperature correction control through feedback from actual sheet temperature
   • Sheet temperature control prevents overheating of sheet surface while quickly heating the sheet's inside

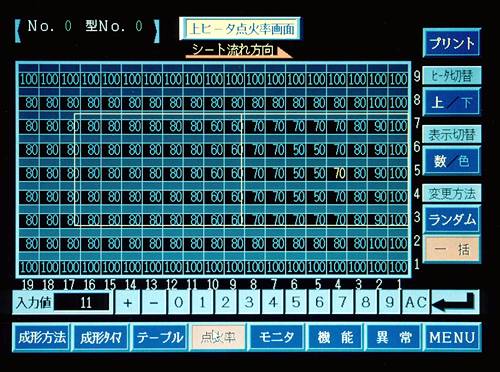

3. Optimum temperature distribution for heat shielding (separate phase controls for each element)
   • Even heating of whole sheet surface
   • Heat shielding for free setting of temperature distribution on sheet

1. Annealing ovens for forming of foamed sheets
2. Annealing treatment device for optical sheet forming
3. Drying oven for paint

and many more

• Whereas ceramic heaters have to remain ON while operators change molds or have their break, the Quick Response Heater switches OFF, thus significantly cutting your energy costs.
• By replacing your currently used ceramic heater with a Quick Response Heater, you can largely shorten your heating cycles and thereby raise your productivity.
• Many clients, both domestic and overseas, are greatly satisfied after retrofitting with Quick Response Heaters.
