These small size machines are the most suitable for development of new parts, forming test, and sheet property test. |

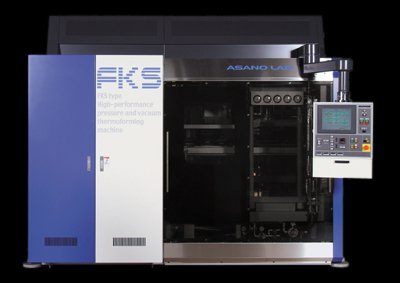

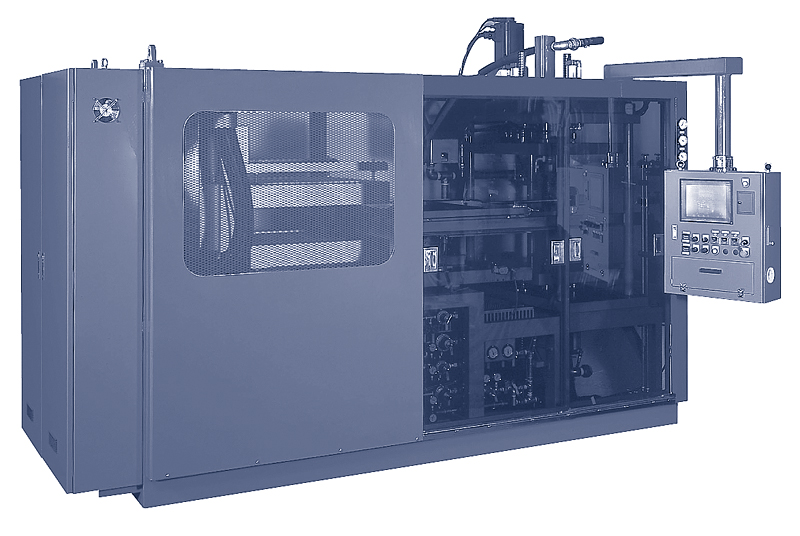

| FKS type Compact Multifunction Pressure & Vacuum Forming Machine |
|
Ideal machine for cut sheet in order to develop new parts and production for a wide variety of parts in small lots. |
| Max forming area (mm×mm) | 600×600 |
| Max forming depth (mm) | 150 |
| Forming method | Straight , drape and plug-assist pressure & vacuum |
| Sheet clamp/Feeder | Toggle clamp (manual)/AC servo motor drive |
| Heater |
Quick Response Heater ( Upper & lower heater ) Each element phase control (0～100% ) |
| Forming press | Clamping force 200kN AC servo motor drive |
| Control system | Full automatic system PLC control system Heater power control system Data management system by hard drive 12.1" color touch panel display |

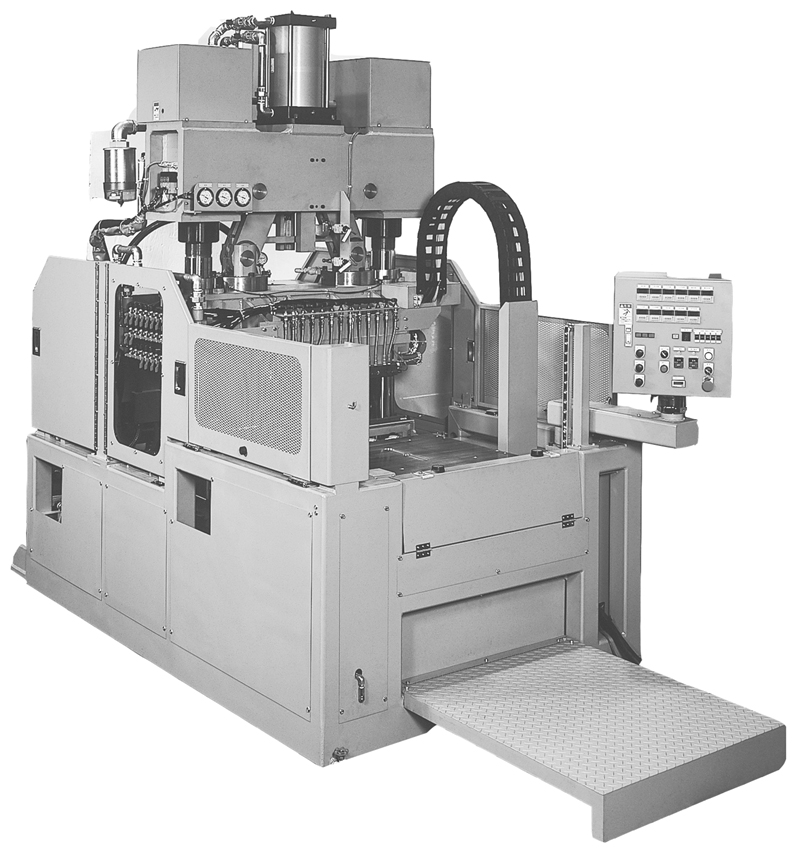

| FKH type Contact Heating Pressure Forming Machine |
|
Ideal machine for cut sheet in order to develop new parts and production for a wide variety of parts in small lots. Contact heating with hot plate .
This machine is well recognized around the globe by the automotive and home appliance industries for IMD (In Mold Decoration) forming. |
| Max forming area (mm×mm) | 600×600 |
| Max forming depth (mm) | 150 |
| Forming method | Pressure & Vacuum |
| Sheet | Cut sheet |
| Heater |
Contact heating with hot plate ,aluminum cast heater Each heater output control 9 block temperature control |
| Forming table |
Pneumatic cylinder drive Mold clamping force 400kN |
| Control system | Programmable controller system |
|
