High-mix low volume production compliant covering from the blister package ,electronic tray to the food containers.
Standardize the water cooling base and reduce changeover time by making easy mounting and removal of cavity.
AC servo motor is used for forming table , plug table and sheet feeding.
Quick Response Heater (QRH) equipped as standard.

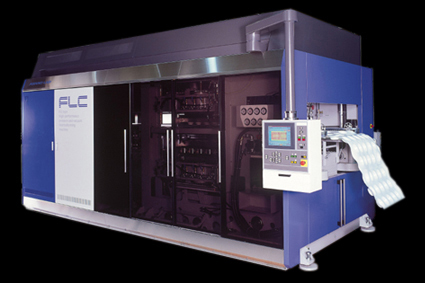

This machine is mainly used for food related containers , e.g. containers for tofu, salad , yoghurt and ramen noodle bowl ,egg pack and lunch box .It has also versatile application including various electronic parts tray and blister containers.
The machine is to be combined with either a conventional punch & die trimming machine ,trimming formed parts row-by-row or steel rule die cutting for whole one shot parts at once.

AC servo motor made it possible faster and more accurate forming . Quick Response Heater ,grip type chain ,sheet lifting device ,chain rail parallel enlargement and mold changer are included as standard,Easy PLC control and machine operation by touch panel . Highly rated for its easy-to-use ,ASANO’s best selling machine.

Main formed parts:Food containers

Materials :Thermoplastic sheet,such as PVC, HIPS, PSP, PP, PPF, A-PET, OPS

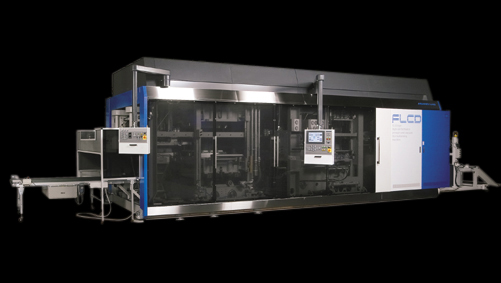

This forming machine with steel rule die cutting is used for a wide range of applications, such as food containers or trays for electrical components.
The machine is equipped with a trimmer inside the same frame. This combination of forming and trimming functions in a single one line significantly eliminates out of place trimming failures.
The advantage of steel rule die is that the cost is much lower than punch & die and that prevent from causing plastic chips and angel hairs . Our Quick Response Heater is also installed. The forming table (ball screw mechanism ) and trimming section are driven by AC servo motors. The number of parts are calculated with counter and then transported onto the conveyor at the time of reaching to set value.

Main formed parts:Food containers, Blister containers

Materials :Thermoplastic sheet, such as A-PET, PVC, HIPS, PC, PP

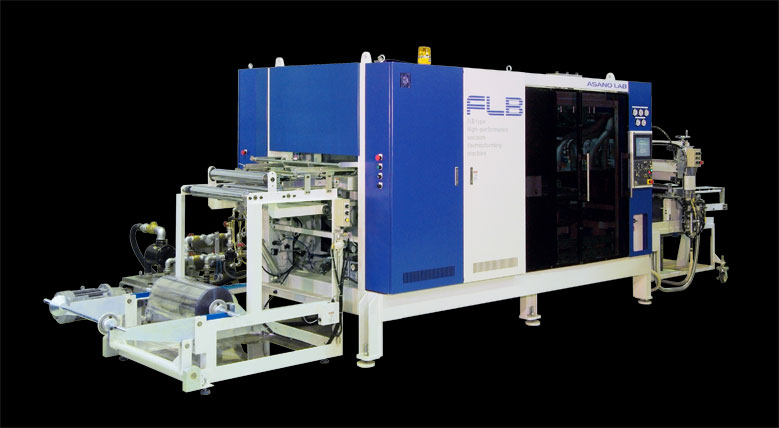

This forming machine is the optimum solution for forming the kind of sheet causing shrinkage due to radiation heater or forming printed sheet . Contact heating method with hot plate by using aluminum cast heater
Typically used for forming the lid of food containers made of BOPS which transparency is regarded as very important . Workable for food and blister containers as well . Sheet feed and forming devices are driven by AC servo motors. The die clamping and the mold changer allow easy mold changing. 12.1" color touch panel made it possible to operate much easily. Printed pattern matching device and maintenance pre-alert system are included.

Main formed parts : Lid for food containers , food containers, Blister containers

Material : Thermoplastic sheet, such as OPS, HIPS, PVC, PP

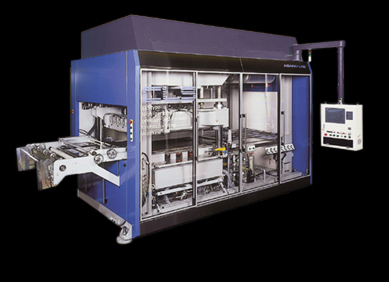

This machine consists of a complete combination of heating, forming, trimming, and parts pushing -out sections.A Steel rule die cutting in the trimming section permits trimming of the one shot entire parts and prevent from causing plastic chips and angel hairs
The Quick Response Heater ensures stable parts forming, and the grip type chain prevent from causing plastic chips during sheet transport

Main formed parts : Food containers, Blister containers

Material : Thermoplastic sheet , such as PVC, HIPS, PSP, PP, PPF, A-PET
