Ideal machine for cut sheet in order to develop new parts and production for a wide variety of parts in small lot.
Forming table and sheet feeding are AC servo motor driven. Heater is Asano quick response heater.
| Main forming products | Food container, Electric appliance and automobile appliance |
|---|---|
| Materialｓ | HIPS,ABS,PC,PP,PET etc. |
| Forming method | Vacuum and pressure forming |
| Sheet feeding method | Air cylinder |
| Heater | Asano quick response heater |
| Forming table driving method | Air cylinder |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
|---|---|---|---|
| FKS-0432-20 | 390 x 390 | 150 | 200 |
| FKS-0632-20 | 600 x 600 | 150 | 200 |

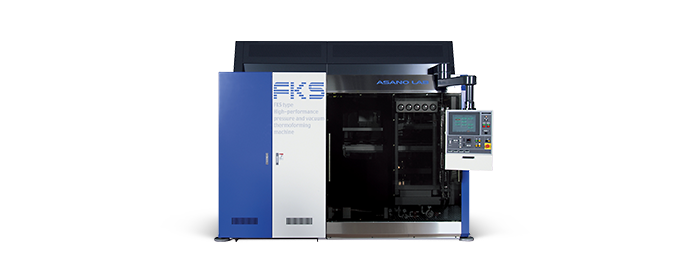

(FKS0632-20)
