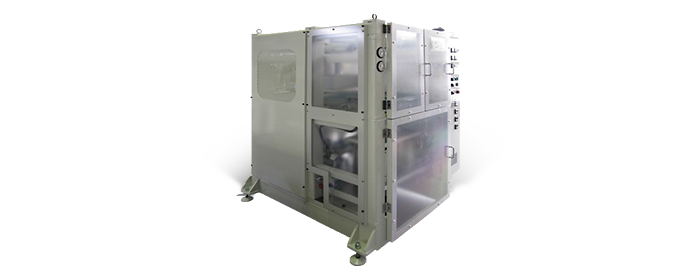

Simple machine for cut sheet in order to develop new parts and produce wide variety of parts in small lot. Forming table and sheet feeding are AC servo motor driven. Heater is Asano quick response heater.
| Main forming products | Electric appliance, automobile appliance |
|---|---|
| Materials | PVC,HIPS,ABS,PC,PP,PET etc. |
| Forming method | Vacuum thermoforming |
| Heater | Asano quick response heater |
| Forming table driving method | Air cylinder |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
|---|---|---|
| FC-1A-12 | 400 x 275 | 80 |

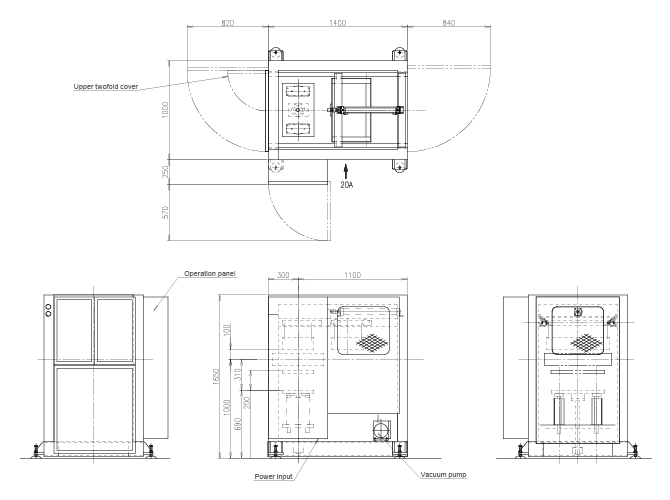

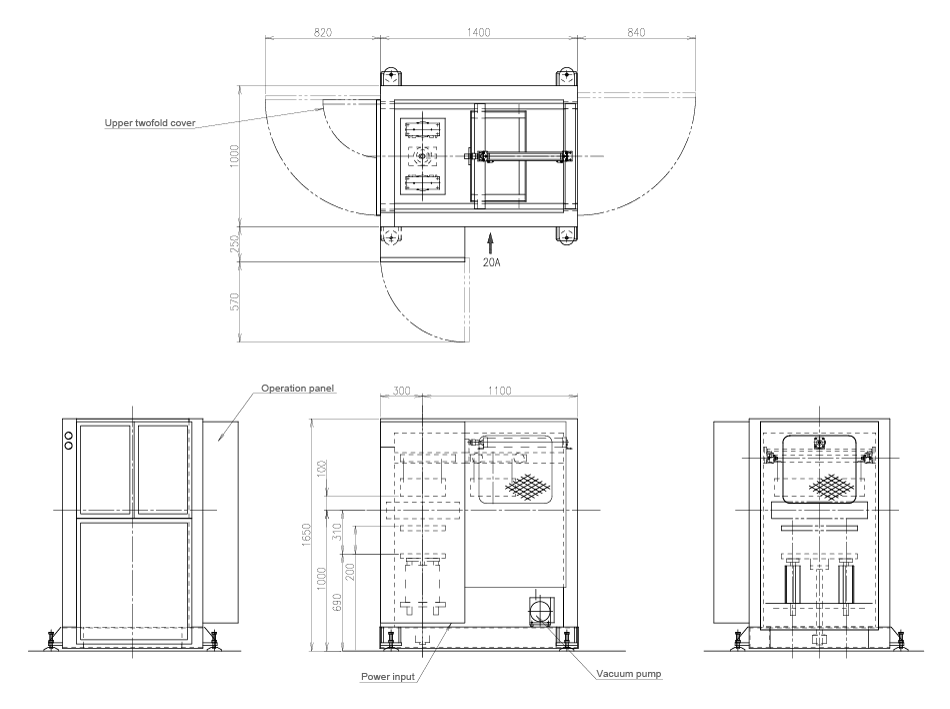

(FC-1A-12)
