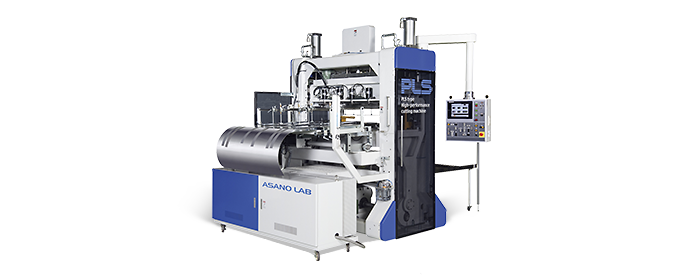

PLS/PLS7 Continuous trimming machine

PLS/PLS7 Continuous trimming machine

Die-punching blade type's trimming machine. Connected with FLC, CLS etc forming machine, production line gets high speed and stable.

Sheet feeding, forming table, knock-out and counting table are AC servo motor drive. Scrap winder equipment is standard specification.

Process

Process

Specification

Sheet feeding method AC servo motor driven, double roll feed
Trimming table driven Crank type by AC servo motor drive
Model Max. trimming area
(W x L, mm)
Max. product height
(mm)
Max. trimming speed
(spm)
Trimming force
(kN)
PLS7-315B4 800 x 320 150 100 70
PLS-410B4 1050 x 320 100 150 50
PLS7-415B4 1050 x 320 150 100 70

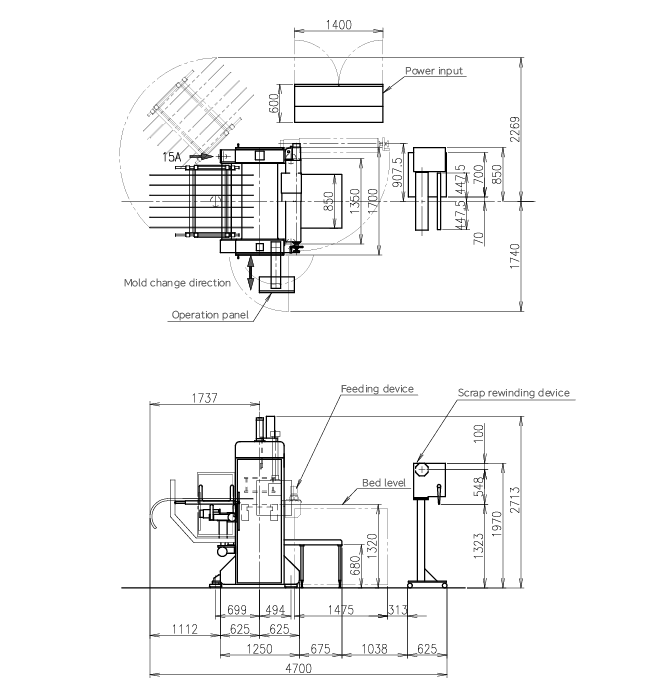

Outside drawing

Outside drawing

(PLS315B4)
