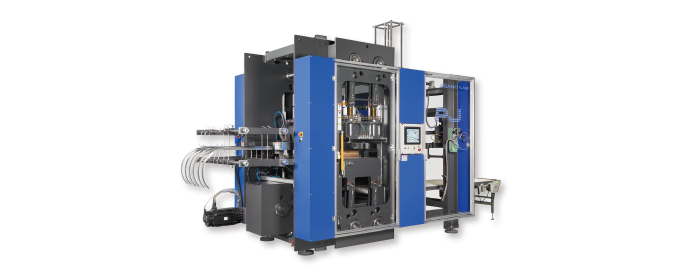

Features of PJ
- High productivity
- High speed trimming by servo motor drive.
- Product stacking function.
- Interlocking with Asano thermoforming machine. Stable production.
- Safety
- Friendly maintenance.
- High accuracy, high rigidity, clean, low noise
- Friendly operation, high repeatability
- Touch panel.
- 300 molds data storage.
- Easy mold change
- Save down time.
- Steel rule die cutting
- Good for small lot size, save mold cost.
| Model | PJ−1.2−EX |
|---|---|
| Trimming area | Max. 750(W) × 580(L)mm |
| Max. product height | Upper / lower draw positive 120mm |
| Transfer | AC servo motor drive, Grip transfer |
| Knock out | AC servo motor drive, conveyor belts included |
