Ideal machine for cut sheet in order to develop new parts and production for a wide variety of parts in small lot.
Suits for material which shrinkage is too high to use radiant heater and printed sheet. Forming table and sheet feeding are AC servo motor drive.
| Main forming products | Electric appliance and automobile appliance |
|---|---|
| Materials | HIPS,ABS,PC,PP,PET etc. |
| Forming method | Vacuum and pressure forming |
| Sheet feeding method | Air cylinder |
| Heater | Aluminum casting heater |
| Forming table driving method | Air cylinder |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
|---|---|---|---|
| FKH-0621-40 | 600 x 600 | height of formed part negative 150 | 400 |

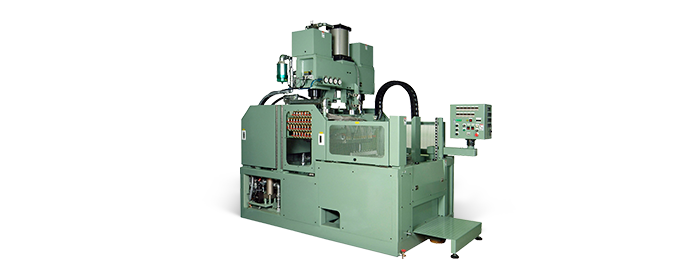

(FKH-0621-40)
