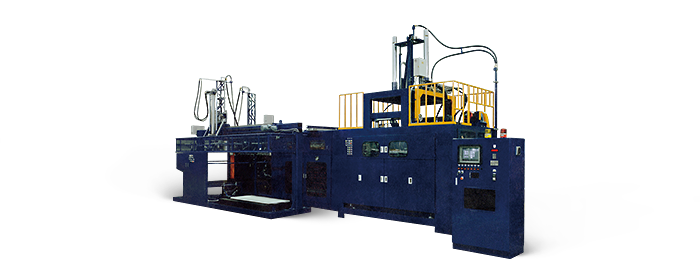

FLT Continuous vacuum forming machine for cut sheet

FLT Continuous vacuum forming machine for cut sheet

Suits for door liner of the refrigerator, automobile components and building material.

Sheet feeding is AC servo motor driven. Forming table is air cylinder driven. To use mold change device mold can be changed within 15 minutes.

Process

Process

Specification

Main forming products Door liner of the refrigerator, automobile components and building material
Materials ABS,HIPS etc.
Forming method Vacuum forming
Sheet feeding method AC servo motor driven, spike chain type
Heater Ceramic heater
Forming table driven Air cylinder
Model Max. forming area
(W x L, mm)
Max. forming depth
(mm)
Max. upper mold clamping force
(kN)
Max. lower mold clamping force
(kN)
FLT-9602 1000×2000 height of formed part positive
250, negative 600
13 30
