Suits for blister pack and Industrial tray etc, high-mix low volume productions. Standardize the water cooling base. Reduce cavity's changing time.
Sheet feeding and forming table are AC servo motor driven. Heater is Asano quick response heater. Included traveling-type-cutter.
Recommend trimming device is Steel-rule type PLB.
| Main forming products | Blister pack，Industrial tray, food container |
|---|---|
| Materials | HIPS, PP, PE, PSP, PET etc. |
| Forming method | Pressure forming |
| Sheet feeding method | AC servo motor driven, grip type chain |
| Heater | Asano Quick response heater |
| Forming table driving method | Ball screw type by AC servo motor drive |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
|---|---|---|---|
| FLB-21 | 600 x 1000 | height of formed part positive 100, negative 100 | 20 |
| FLB-31 | 800 x 1000 | height of formed part positive 100, negative 100 | 20 |

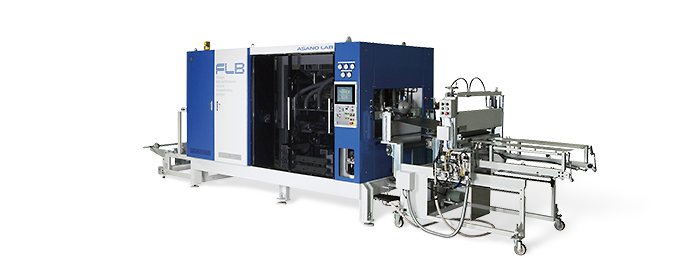

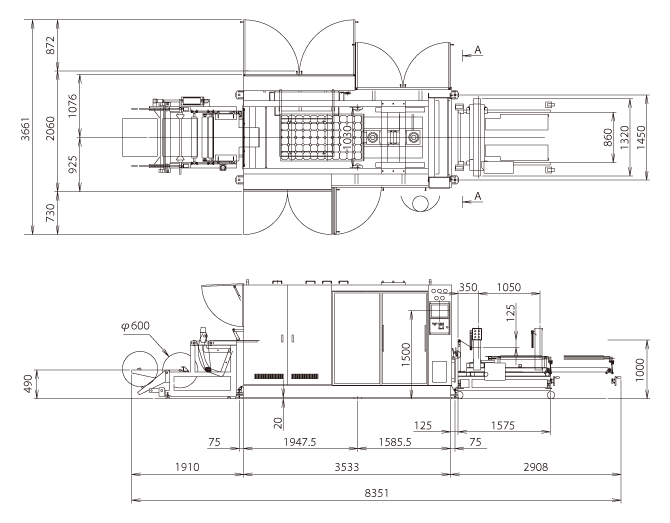

(FLB-21)
