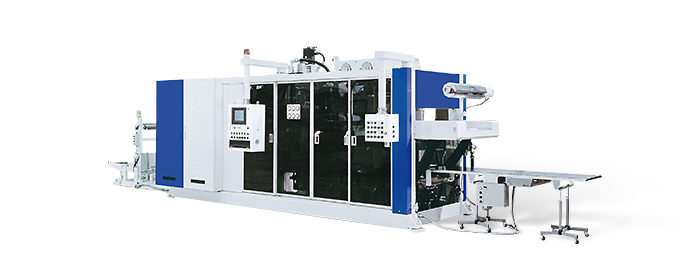

A machine is combined with the functions of heating, forming, trimming and products unloading equipment. Suits for blister pack and industrial tray.
Trimming method adapts steel rule die type. Sheet feeding and forming table are AC servo motor driven. Heater is Asano quick response heater. After counting the number, the formed products are discharged by conveyer.
Forming table is crank driven by AC servo motor.
| Main forming products | Blister pack, Industrial tray |
|---|---|
| Materials | A-PET, PVC, HIPS, PC, PP etc. |
| Forming method | Vacuum (and pressure) forming |
| Sheet feeding method | AC servo motor driven, grip type chain |
| Heater | Asano Quick response heater |
| Forming table driving method | Ball screw by AC servo motor drive |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Forming method |
|---|---|---|---|
| FLD-208VC4 | 600 x 600 | height of formed part positive 80, negative 80 | Vacuum and pressure forming |
| FLD-208PC4 | 600 x 600 | height of formed part positive 80, negative 80 | Vacuum forming |
