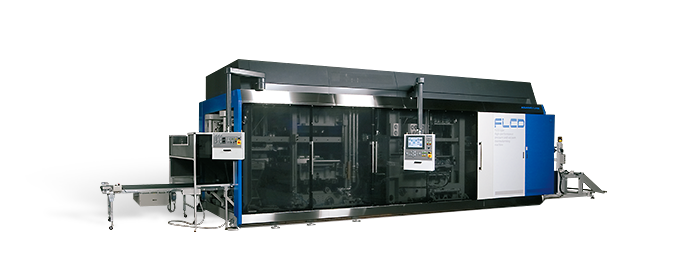

A machine is combined with the functions of heating, forming, trimming and products unloading equipment. Suits for food container.
Trimming method adapts steel rule die type. Sheet feeding and forming table are AC servo motor driven. Heater is Asano quick response heater. After counting the number, the formed products are discharged by conveyer.
Forming table is crank driven by AC servo motor.
| Main forming products | Food container |
|---|---|
| Materials | A-PET, PVC, HIPS, PC, PP etc. |
| Forming method | Vacuum and pressure forming |
| Sheet feeding method | AC servo motor driven, grip type chain |
| Heater | Asano Quick response heater |
| Forming table driving method | Crank type by AC servo motor drive |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
|---|---|---|---|
| FLCD-315PC4 | 800 x 800 | height of formed part positive 150, negative 80 | 450 |
| FLCD-415PC4 | 1,000 x 1,100 | height of formed part positive 150, negative 80 | 450 |

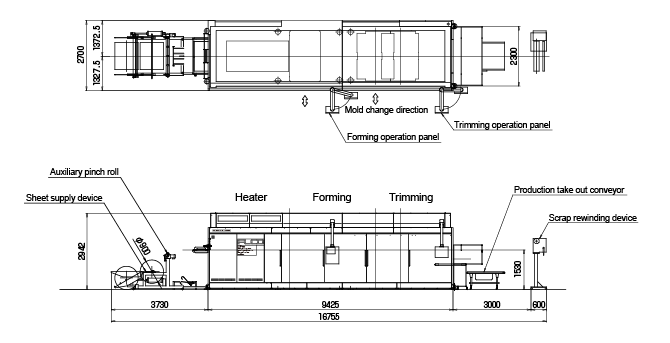

(FLCD-415PC4)
